Intelligent Bending, Engineered for Speed

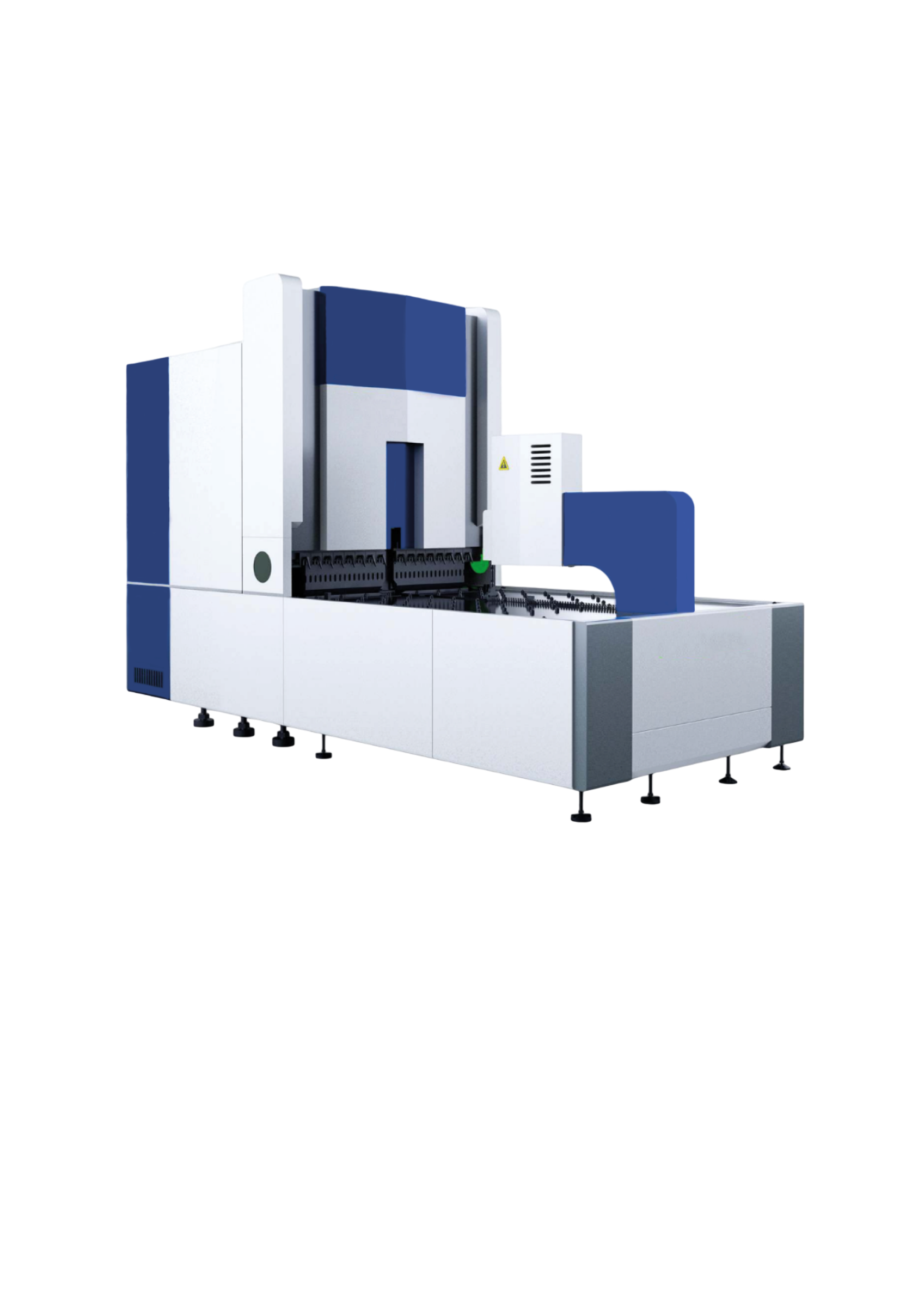

iBend Panel Bender

MVD Panel Bender is a full servo-electric CNC bending system designed for fast, precise and fully automatic forming of sheet metal panels. With its 15-axis configuration and independent servo-controlled upper and lower bending blades, it performs positive, negative and multi-sided bends in a single cycle, with bending speeds of up to 0.2 seconds per bend. Automatic sheet positioning and rotation, automatic workpiece clamping and a brush and ball transfer worktable minimize operator intervention and ensure consistent part quality. Complex profiles, radius bending and hemming can be produced with flexible bending tooling suitable for various sheet metal geometries. Built on a high-rigidity machine frame with precision ball screws and linear guides, the Panel Bender offers energy-efficient, low-noise operation with reduced maintenance requirements.

ORDER NOW VIEW CATALOG

STANDARD FEATURES

• Full servo-electric CNC bending system with 15-axis configuration
• MVD CNC control system with user-friendly operating interface
• High-speed bending performance of up to 0.2 seconds per bend
• Independent servo-controlled upper and lower bending blades
• Automatic positive, negative and multi-sided bending operations
• Complex profile forming, radius bending and hemming capabilities
• Flexible bending tooling for various sheet metal geometries
• Automatic sheet positioning and rotation with pressing-arm feeding system

• Automatic workpiece clamping system
• Brush and ball transfer worktable for smooth material handling
• High-rigidity machine frame with precision mechanical construction
• High-performance servo motors with synchronized axis control
• Precision ball screw and linear guide transmission system
• Energy-efficient, low-noise operation with reduced maintenance requirements
• Integrated lubrication system for mechanical components

Model	Unit	PB 2000	PB 2500
Specification	Unit	PB 2000	PB 2500
Maximum Bending Size (L x W)	mm	2000 x 1250	2500 x 1250
Maximum Bending Height	mm	170	170
Minimum Bending Height	mm	3	3
Max. Bending Thickness - Stainless Steel	mm	1.5	1.2
Max. Bending Thickness - Cold Plate	mm	2.0	1.5
Max. Bending Thickness - Aluminum	mm	2.0	2.0
Minimum Material Thickness	mm	0.35	0.35
Minimum Arc Radius	mm	0.5	0.5
Min. Internal Dimension (Quadrilateral Forming)	mm	140 x 190	140 x 190
Min. Internal Dimension (Bilateral Forming)	mm	140	140
Bending Angle	°	0-180	0-180
Fastest Bending Speed	sec/bend	0.2	0.2
Minimum System Accuracy	mm	0.001	0.001
Number of Axes	pcs	15	15
Feeding Structure	-	Pressing arm type	Pressing arm type
Workbench Structure	-	Brush and ball transfer unit	Brush and ball transfer unit
Rated Voltage	V	380	380
Total Motor Power	kW	77	77
Average Power Consumption	kW	~2.5	~2.8
Noise	dB	~50	~50
Overall Dimensions (L x W x H)	mm	5150 x 2650 x 3300	5650 x 3000 x 3400
Total Weight	kg	~16000	~19000

*Specifications may change without notice.
