Displayed Models
S-100-3100
The S-100-3100 Press Brake is a screw-driven servo solution representing the pinnacle of precision and speed, with a bending force of 100 tons and a bending length of 3,100 mm. This system, where precision-engineered ball screws are combined with servo motor drives, offers up to 60% energy savings and up to 35% faster bending processes compared to conventional systems. With its completely oil-free and environmentally friendly design, the S-100-3100 supports sustainable production while providing flawless repeatability, especially for jobs requiring complex geometries and tight tolerances. With high approach and return speeds of 250 mm/s, this machine is the fastest in its class and offers maximum efficiency and comfort in the production area with its compact structure and ergonomic design. It is an ideal, high-performance investment tool for businesses aiming for fast and error-free production.

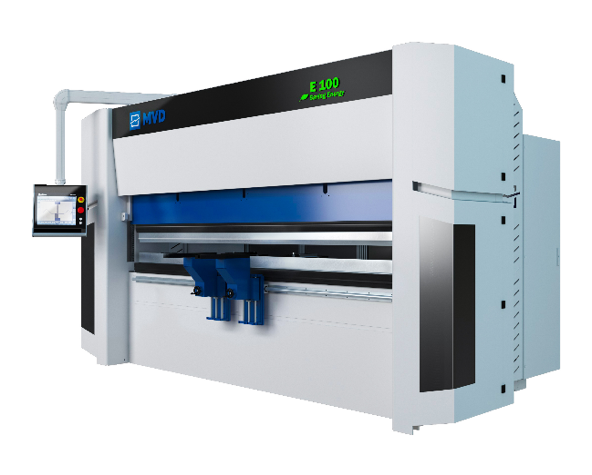

E-100-3100
The E-100-3100 Press Brake is an innovative belt and pulley driven electro-servo solution designed for high-precision sheet metal bending applications, with a bending force of 100 tons and a bending length of 3,100 mm. With its completely oil-free operating principle and up to 50% energy savings compared to traditional hydraulic systems, it offers both an environmentally friendly and low-operating-cost production environment, while its quiet operation provides a comfortable working environment for operators. This model, which efficiently transfers the power of two synchronous servo motors through a belt and pulley system, offers high productivity and uninterrupted production performance with an approach speed of 95 mm/s and short cycle times. Thanks to the innovative O-Type body design, the effect of deflection on the side frames is eliminated, ensuring superior stability and durability. It stands out as one of the most efficient choices in its class for modern sheet metal processing facilities seeking a fast return on investment.

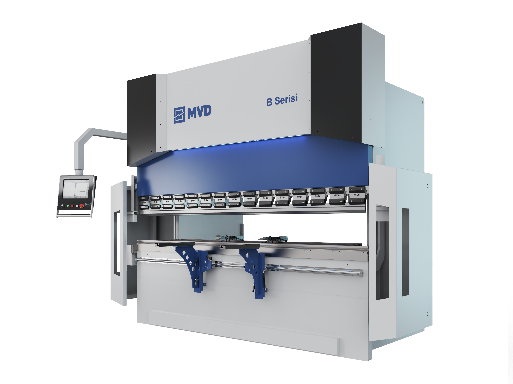

B-135-3100
The B-135-3100 Press Brake offers a powerful solution for the precision processing of medium and large-scale sheet metal parts, with a bending force of 135 tons and a bending length of 3,100 mm. With a stroke of 260 mm, a throat depth of 410 mm, and a distance between columns of 2600 mm, it provides a spacious working area where long and complex parts can be easily processed. The robust and stable body structure supports high precision, while optimized speed values (approach 210 mm/s, bending 10 mm/s, return 130 mm/s) deliver an efficient production rhythm. The machine provides high performance with low operating costs thanks to its 11 kW motor power and compact installation dimensions, and together with its robust back gauge system, it guarantees repeatable and accurate bending results in every operation.

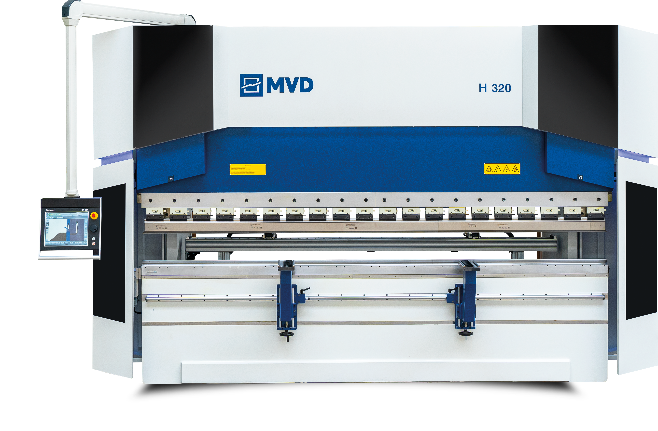

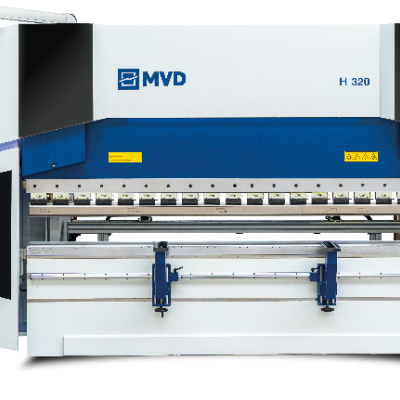

H-320-4100
The H-320-4100 Press Brake is a hybrid solution developed for heavy industrial and large-scale sheet metal operations, with a bending force of 320 tons and a bending length of 4,100 mm, combining power with precision. This model, which blends the strength of a hydraulic system with the control of servo motor technology, provides up to 40% energy savings compared to conventional hydraulic machines. Thanks to its motor structure that operates only during bending, it minimizes oil heating and extends component life. With approach and return speeds of 250 mm/s and high-tonnage precision bending capability, it delivers millimeter accuracy even on large parts. With its durable body structure and low maintenance costs, it provides maximum efficiency and reliability for facilities with high production tempos.

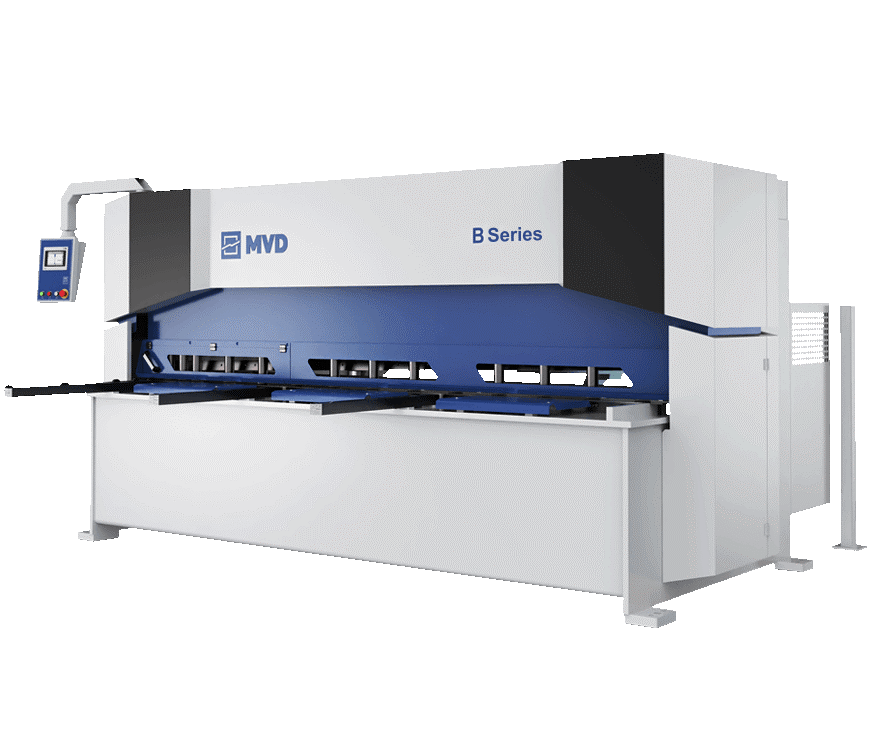

B-06-4000
The B-06-4000 Guillotine Shear is a professional solution designed for the precise and efficient processing of large-format sheet metal plates, with a cutting capacity of 6 mm and a cutting length of 4,000 mm. It delivers burr-free and vibration-free cutting performance up to 6 mm for materials with a tensile strength of 450 N/mm², and up to 4 mm for high-strength materials with a tensile strength of 700 N/mm². The powerful hydraulic drive system and monoblock body structure provide long-lasting and stable operation. Thanks to the precise back gauge system and advanced control mechanism, repeatable cutting accuracy is achieved in every operation; its user-friendly interface and ergonomic design offer a comfortable working experience for operators.

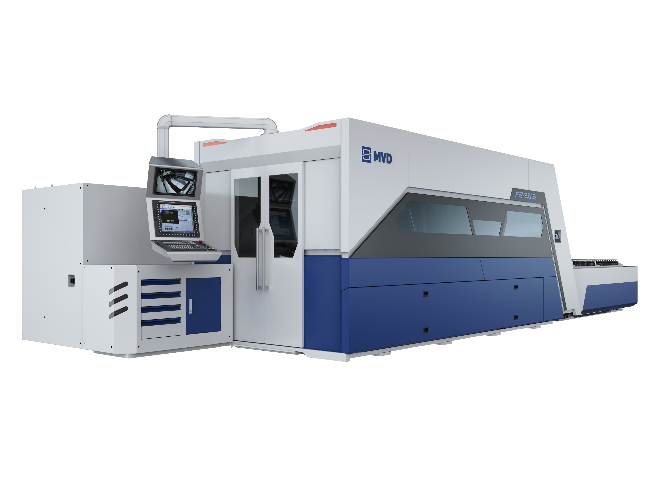

F-12-3015 RAY
F-12-3015 RAY Fiber Laser is a professional solution offering high-speed and precise cutting across a wide range of materials such as mild steel, stainless steel, and aluminum, with a laser power of 12 kW and a cutting area of 3,000 × 1,500 mm. It provides superior cutting quality with a repeatability accuracy of ±0.03 mm and a positioning accuracy of ±0.05 mm, while enabling high-tempo production processes with a maximum axis speed of 150 m/min and a synchronized speed of 210 m/min. The F-12-3015 RAY minimizes installation time thanks to its ready-to-use structure, and with its compact design and low operating cost, it offers an efficient and reliable investment alternative for modern sheet metal processing facilities.
