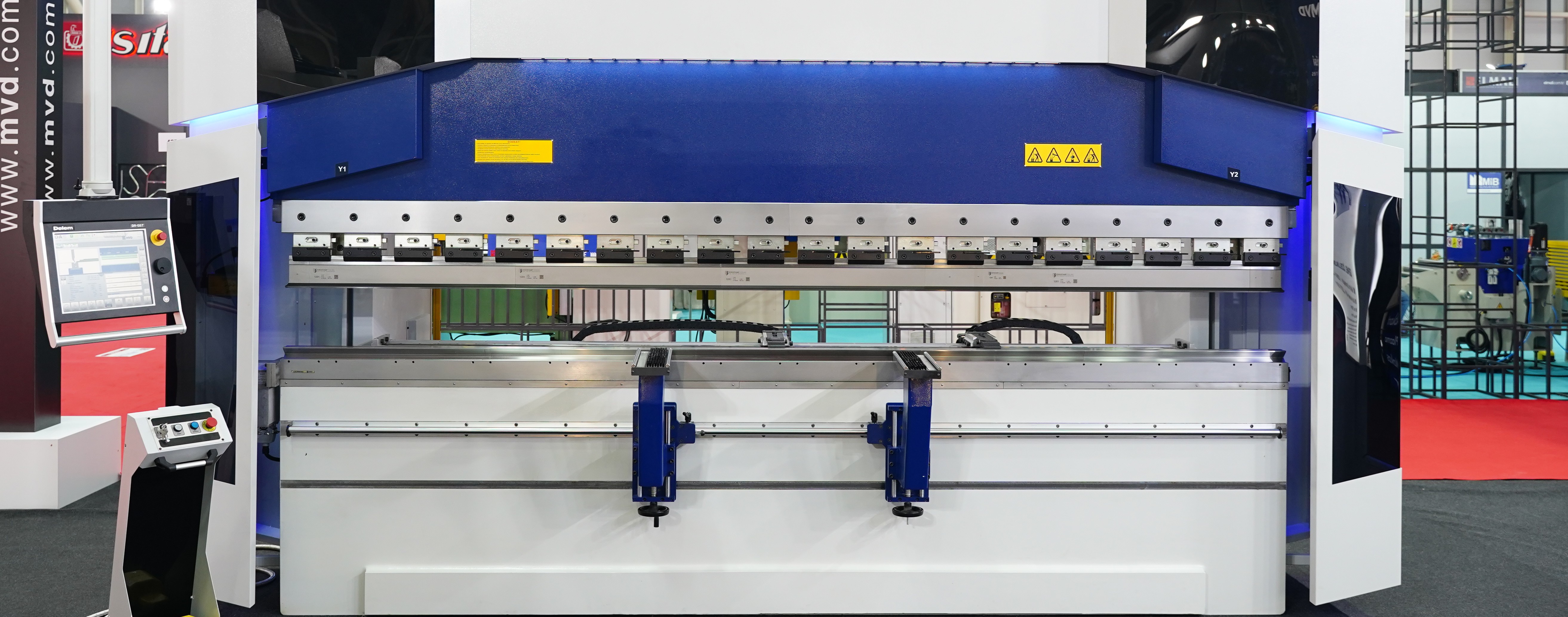

Why Press Brake Angles Change From the Center to the Ends of a Long Bend
A bend that meets the target angle at one point but opens or closes elsewhere is not, by itself, a controller problem. On a long part, the punch-to-die relationship can change under load as the ram and bed deflect. But uneven bend angles can also come from local tooling conditions, poor seating, asymmetric support, alignment concerns, or material variation.
The productive response is to map the error before changing settings. A measured pattern helps distinguish predictable, load-related deflection from a local or one-sided condition that crowning cannot reliably cure. Only after the physical setup has been checked should crowning or a controller-based correction be adjusted and verified.
Map long bend angle variation before changing the program
Start with a consistent inspection method. Measure the unloaded angle at the left end, left quarter, center, right quarter, and right end, following machine-coordinate order. Keep the measurement method and the part-support condition unchanged for every reading.
The unloaded condition matters because elastic recovery opens the bend after forming load is removed. Comparing angles taken under different post-bend conditions can obscure the pattern the inspection is intended to reveal.
This five-point map does more than identify whether a part is in or out of tolerance. It distinguishes the *shape* of the problem:
- A smooth, broadly symmetric pattern is consistent with a load-related change in the effective punch-to-die relationship.
- A center that is more open than both ends can indicate lower effective punch penetration in the middle, often associated with insufficient compensation for loaded deflection.
- A center that is more closed than the ends can indicate excessive crowning compensation.
- A one-sided or isolated change should not automatically be labeled a crowning issue. It calls for checks of alignment, tooling seating, support, blank position, and material variation.
These patterns are diagnostic indications, not final proof. Their value is that they prevent a local setup problem from being treated as a global compensation problem—or the reverse.
Why loaded deflection creates uneven bend angles
Ram and bed deflection occur under bending load. Along a long bend, that deflection can alter the effective relationship between punch and die at different positions on the workpiece. The resulting angle may therefore differ between the center and the ends.
This is inherent to bending under load, regardless of press-brake size or tonnage. Longer beds and higher forming tonnage increase the need to consider deflection compensation, but they do not establish that every setup requires crowning.
Crowning applies an opposing correction intended to keep the ram and table effectively parallel during bending. When it matches a predictable deflection pattern, it can make the angle more uniform over the bend length. It is not, however, a universal correction for any uneven result.
The needed compensation depends on the bend length, material, thickness, die opening, tooling, and forming load. Load distribution and bend symmetry also matter. An asymmetric or off-center load may not be fully corrected by crowning, even where the machine is otherwise functioning properly.
Check press brake crowning compensation against test bends
If the mapped readings show a smooth, symmetric center-to-end pattern, review the crowning setting using the applicable machine documentation. Do not infer the correct amount from an end-angle reading alone.
A center that opens relative to the ends may reflect insufficient compensation. Conversely, if compensation is excessive, the center can become more closed than the ends. In either case, correction should be made through controlled test bends and confirmed by measuring the same positions on the resulting part.
This verification step is important because a correction that works under one set of load conditions may not transfer to another. A change in material, bend length, tonnage, or tooling setup can change the compensation requirement. Treat crowning as a response to a measured loaded-deflection pattern, not as a permanent number to apply across unrelated jobs.
Crowning also has a clear limit: it compensates predictable deflection; it does not correct a burr beneath a die segment, a damaged holder surface, worn tooling, or an alignment condition. When the error is not symmetric, compensation may simply shift the error rather than remove its cause.
Inspect tooling support and press brake tooling alignment
Before assigning long bend angle variation to ram or bed deflection, inspect the mechanical stack that establishes tool position. Check tooling, bed, and holder contact surfaces for debris, burrs, or damage. Confirm that the tools are fully seated and clamped.
Small local differences in support can create local differences in bend behavior. Particular attention is warranted where segments join, because mismatched or worn die segments can create height differences. Uneven tooling support, contamination beneath the tooling, and differences in tooling condition can all contribute to side-to-side angle variation.
Tool wear deserves separate attention. Worn punch tips or die shoulders alter the contact conditions that govern the bend. Controller calculations, however, assume a particular tool geometry. A software correction can therefore fail to correct wear and may conceal the underlying tooling condition behind an apparently workable offset.
The practical sequence is straightforward: establish that the tooling is clean, seated, clamped, matched, and in suitable condition before using compensation to explain the result. A repeatable local deviation after these checks may need further investigation, but it should not be hidden with a global correction.
Separate asymmetric patterns from machine-condition concerns
A one-sided result has different implications from a smooth center-versus-end curve. If the left and right sides do not behave similarly, inspect the support condition, blank position, tooling seating, and possible material differences before increasing or decreasing crowning.
Alignment and mechanical conditions can also contribute to uneven bend angles. Machine leveling, ram-to-bed parallelism, cylinder synchronization, guide condition, foundation condition, and control-related maintenance adjustments require assessment by qualified personnel using approved procedures. These are not operator-side substitutions for a crowning adjustment, and they should not be diagnosed solely from one part pattern.
The key distinction is between a predictable pattern that follows the load and a result that is local, asymmetric, or one-sided. The former can support a compensation check. The latter requires the setup and machine condition to be examined on their own terms.
Consider material variability after the setup is sound
Unchanged nominal settings do not guarantee unchanged bend results. Actual thickness, strength, rolling direction, temper or condition, and batch-to-batch behavior can all affect bending. Material variation can coexist with a tooling, setup, or mechanical issue, so it should not become a default explanation before the physical checks are complete.
When a mapped pattern changes after material conditions change, revisit the measured result rather than assuming the prior crowning setting remains valid. Since compensation requirements depend partly on material and forming load, the correct response is to verify the current setup with measured test bends.
When a controller offset adjustment is appropriate
Controller adjustments have a legitimate role, but their timing matters. A controller-based crowning adjustment is appropriate when the team has identified a measured, repeatable, load-related deflection pattern; checked the tooling and support conditions; followed the machine documentation; and verified the revised setting with controlled test bends.
Repeated controller-offset changes are a poor first response to uneven angles. A setting can look correct in the control while the machine, tooling, and material behave differently under load. In particular, an offset can conceal an underlying worn-tooling or tool-geometry condition behind an apparently workable result.
Use the controller to refine a verified physical condition, not to substitute for inspection. If the angle map is one-sided or shows an isolated local deviation, return to checks of tooling seating, support, blank position, alignment, and material variation rather than continuing to chase the result with offsets.
A measured pattern leads to the right correction
Long bend angle variation is best handled as a diagnosis sequence. First, measure the unloaded part consistently at several positions. Next, decide whether the map is smooth and symmetric or local and one-sided. Then inspect tool seating, contact surfaces, segment condition, support, and wear before attributing the result to structural deflection.
Where the evidence supports a repeatable loaded-deflection pattern, use crowning according to the machine procedure and prove the result on measured test bends. Where the pattern points elsewhere, correct the setup, tooling, material, or machine-condition issue instead. This approach avoids using controller adjustments to conceal a problem that compensation was never intended to solve.
MVD Team - 27 August 2026
