Coil-Fed Laser Blanking vs. Coil-Fed Shear Blanking: When Does Flexibility Matter?
For companies comparing coil-fed laser blanking vs shear blanking, the cutting method is only one part of the question. Coil processing links material preparation, feed control, cutting, scrap removal, and blank stacking. The useful operating range of a line depends on how those stages work together.
The available information documents specific strengths of coil-fed laser blanking: contours can be changed through software rather than dedicated dies, and coil has been described as a virtually continuous surface for nesting. It also documents coil-fed laser installations using different feed-and-cutting modes. Evidence for broad, independent comparisons with coil-fed shear blanking is more limited. It does not establish a general winner on cost per part, cycle time, tolerance, edge quality, material yield, or stacking rate.
That makes the blank mix a sensible place to begin. Laser’s documented contour flexibility may be particularly relevant where profiles change regularly or where complex, curvilinear shapes are part of the work. A decision still needs to account for the materials run through the line and for the handling arrangement before and after cutting.
Begin with the blank requirements
A blank is generally described as a close-tolerance part cut to a specified size and intended to proceed directly to the next manufacturing operation. This distinguishes blanking from producing standard-size sheet that may later be re-sheared.For laser blanking, the clearest documented distinction is die-free contour change. Changed or new blank contours can be made through the cutting program or software without a dedicated die for each contour. This capability does not, by itself, establish the time or economics of a production change, but it identifies how the laser cutting path can be altered.Coil-fed laser systems have also been described producing tightly nested complex curvilinear shapes. Coil material has been characterized as a virtually continuous nesting surface. These descriptions support treating nesting as an important consideration for irregular profiles, while avoiding a claim that every contour will improve material utilization or that a universal yield result follows.The evidence on coil-fed shear blanking is more narrowly framed. One description of a combined coil-fed shear-and-laser line assigns rapid blank cutting to the shear. That line included automated feeding, levelling, cutting, and stacking, and it described laser cutting for straight, trapezoidal, and differently shaped blanks. This shows that shear and laser functions can be incorporated into a coordinated coil-processing arrangement. It does not provide comparable data that would establish which method is better for simple rectangular blanks or other recurring geometries.As a result, a straightforward profile should not be treated as proof that either process is inherently preferable. The relevant questions remain the mix of contours, the frequency of contour changes, the materials required, and the line’s handling configuration.
Coil-fed laser blanking is a line process

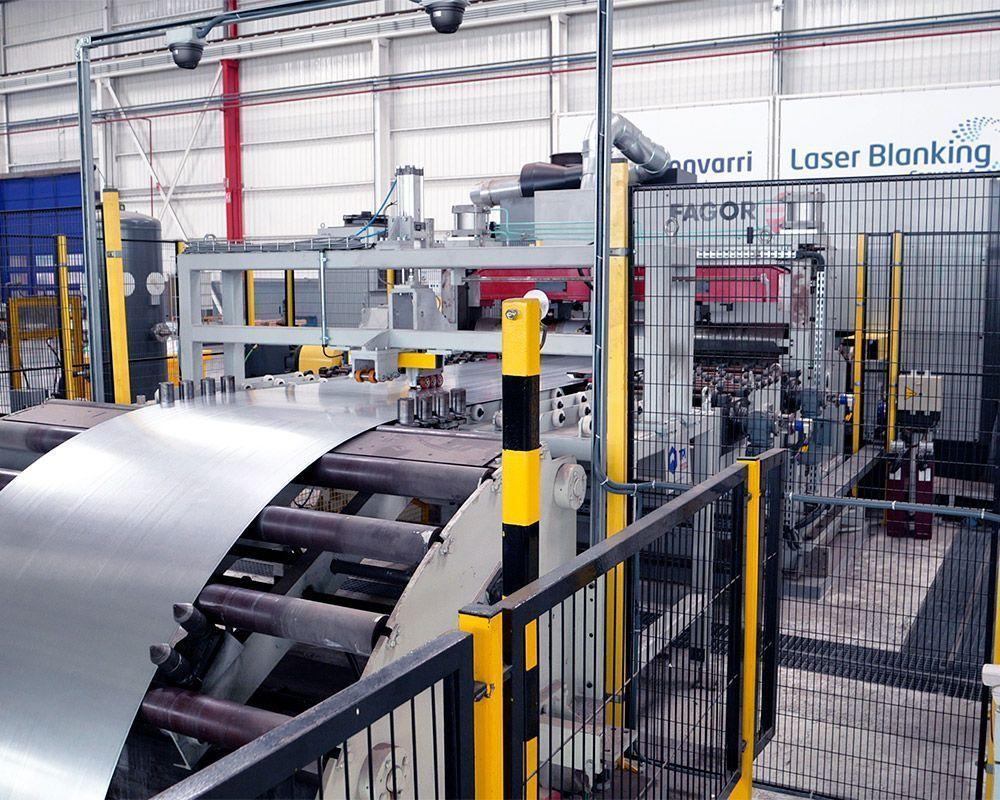

A coil-fed laser blanking process can combine decoiling, straightening, cutting, and stacking in one continuous sequence. In one described arrangement, a decoiler unwound strip and fed it to a straightener at constant speed. Tension-control and centering devices were used to support smooth, accurate feeding.
These elements place coil material handling alongside the cutting process in a line review. Leveller selection is also material-dependent: roller size constrains the material that a leveller can level. The available information does not supply roller-sizing rules or material-property limits, but it does identify the roller arrangement as a constraint on what a machine can process.
Coil-fed laser blanking has been described in two operating modes:
-
Index mode: strip advances between cutting cycles, and the laser cuts a stationary section.
-
Continuous mode: the laser cuts while the strip continues to move.
The evidence does not establish a universal productivity ranking between these modes. In a described stationary-cut configuration, a buffer can be required between levelling and laser cutting. Other coil-fed laser installations have been described cutting continuously while the strip moves.
One system-specific example shows how operating mode may be selected around the work. In that installation, continuous mode was generally used for runs of 10,000 blanks or more. Index mode was available where an individual cutting path could not be completed within the continuous-mode cutting window. This is not a general volume threshold for all lines. It does indicate that run length and cut-path requirements can affect the choice of mode.
Where laser blanking flexibility may be relevant
Laser’s documented features are most relevant when they correspond to recurring requirements in the production schedule.
Contours that change or are newly introduced
Laser blanking can make contour changes through software or the cutting program rather than through dedicated dies. Where profiles are revised or new shapes are introduced, this is the direct, documented basis for laser blanking flexibility.
Complex and curvilinear shapes
Coil-fed laser systems have been described cutting tightly nested complex curvilinear shapes. In those applications, the coil’s virtually continuous nesting surface is part of the process description. The sources do not show that every complex part produces a material-saving result, so nesting performance should not be assumed from shape complexity alone.
A limited set of coil materials
One industry source characterizes coil-fed cutting as a poor fit for operations that consistently change material grades and thicknesses. It may be an option where product families use a limited group of materials readily available as coil. This qualification applies to the operating model rather than to contour flexibility itself: an easily changed cutting path does not remove the need to manage changes in incoming coil material.
Removal of a cut-sheet inventory stage
Conventional cut-to-length processing can create a cut-sheet inventory buffer before fabrication. Coil-fed laser cutting can remove that cut-sheet buffer. This does not eliminate handling requirements, since coils must still be loaded and controlled and blanks must still be handled after cutting. It identifies a different flow from coil to blank.
Coil changes, scrap flow, and stacking
Coil-change arrangements affect how a coil-fed blanking line is used. Double decoilers or automatic cassette-changing equipment can reduce coil-changeover time. No cycle-time figures are supplied, and these arrangements do not alter the broader challenge of an operation that repeatedly changes grades and thicknesses.
Scrap and finished blanks also require an organized downstream arrangement. In one continuous-feed laser blanking installation, scrap dropped below the cutting area while robots lifted and stacked blanks. This is an installation-specific example, not a standard configuration for every line. It nevertheless illustrates that cutting, scrap removal, and stacking are all parts of a coil-fed system description.
Thickness can introduce another system-level consideration. A source describing high-speed laser blanking states that such systems generally use thinner stock to maintain speed and achieve proper stacking, even though the lasers can cut thicker material. The distinction matters: laser cutting capability alone does not define the thicknesses that a complete coil-fed line can process at a given speed while producing properly stacked blanks. The evidence does not define a universal thickness limit.
A restrained comparison with coil-fed shear blanking
A useful coil-fed laser blanking vs shear blanking comparison should separate documented differences from unproven generalizations. There is no compatible evidence here for a general cost-per-part, productivity, tolerance, edge-quality, or stacking-rate conclusion. Nor is there a supported rule assigning all simple blanks to shear and all complex blanks to laser.
What the available descriptions do support is narrower. A combined line associates the shear with rapid blank cutting and includes laser capability for straight, trapezoidal, and other shapes. Separately, coil-fed laser blanking is documented as allowing die-free contour changes and as cutting tightly nested complex curvilinear forms. The laser case therefore rests on the adaptability of the cutting path and the ability to nest on coil, rather than on a claim that laser automatically outperforms shearing across repetitive blanking work.
A line review can focus on the production facts that correspond to those documented capabilities:
-
the number of contour families run regularly;
-
how often contours are changed or added;
-
whether complex or curvilinear profiles recur;
-
the grades and thicknesses that must be changed;
-
whether materials are readily available as coil;
-
whether cutting will be indexed or continuous; and
-
the configured approach to coil changes, scrap removal, and blank stacking.
This approach keeps the comparison at the level supported by the evidence. It evaluates the fit between the intended work and the line arrangement without substituting unverified assumptions about speed, cost, or yield.
Conclusion
Coil-fed laser blanking offers documented die-free contour changes through software or the cutting program, along with described capability for tightly nesting complex curvilinear shapes on coil. Those characteristics may be especially relevant when revised contours, new profiles, and irregular shapes recur in the blank mix.
The choice cannot be reduced to cutter type alone. Coil preparation, levelling capacity, tension and centering arrangements, cutting mode, coil changes, scrap flow, and stacking all form part of the operating context. For stable and straightforward blank requirements, the available evidence does not establish that coil-fed laser blanking or coil-fed shear blanking is universally preferable. A sound comparison instead matches the documented capabilities of each arrangement to the actual materials, shapes, and handling requirements of the work.
MVD Team - 02 September 2026
