Displayed Models

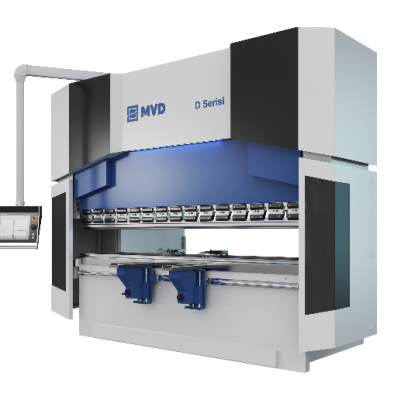

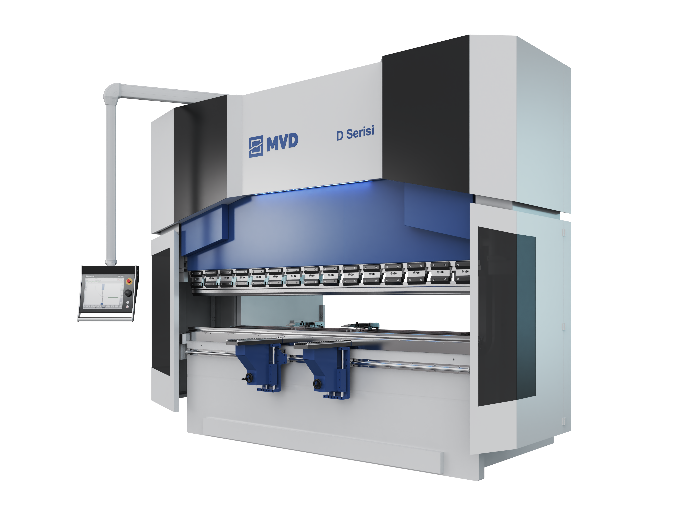

 C-320-4100

The C-320-4100 Press Brake is a professional solution delivering superior performance in heavy-duty sheet metal bending operations, with a bending force of 320 tons and a bending length of 4,100 mm. With a stroke of 310 mm, a throat depth of 410 mm, and a distance between columns of 3,600 mm, it provides a spacious working area where long and large parts can be easily processed. The monoblock body structure and advanced hydraulic system support high precision and repeatability, while optimized speed values (approach 150 mm/s, bending 10 mm/s, return 110 mm/s) and a 22 kW motor power deliver uninterrupted production performance. With an oil tank capacity of 290 liters and compact installation dimensions, the C-320-4100 provides high stability and low operating costs even in demanding production environments, making it a reliable long-term investment.

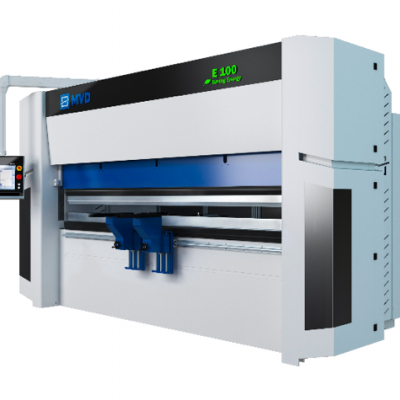

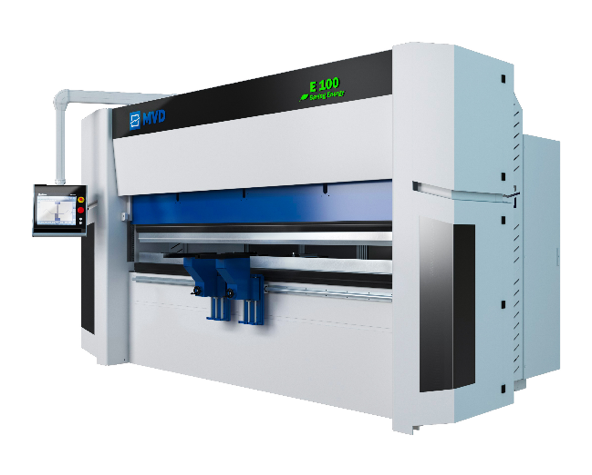

E-100-3100

The E-100-3100 Press Brake is an innovative belt and pulley driven electro-servo solution designed for high-precision sheet metal bending applications, with a bending force of 100 tons and a bending length of 3,100 mm. With its completely oil-free operating principle and up to 50% energy savings compared to traditional hydraulic systems, it offers both an environmentally friendly and low-operating-cost production environment, while its quiet operation provides a comfortable working environment for operators. This model, which efficiently transfers the power of two synchronous servo motors through a belt and pulley system, offers high productivity and uninterrupted production performance with an approach speed of 95 mm/s and short cycle times. Thanks to the innovative O-Type body design, the effect of deflection on the side frames is eliminated, ensuring superior stability and durability. It stands out as one of the most efficient choices in its class for modern sheet metal processing facilities seeking a fast return on investment.

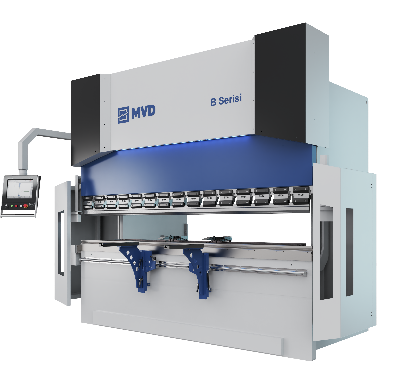

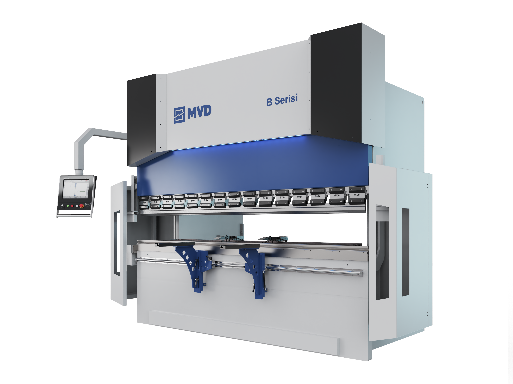

B-100-3100 with Robot

The B-100-3100 Press Brake is an economical solution delivering high performance in medium-scale sheet metal bending operations, with a bending force of 100 tons and a bending length of 3,100 mm. With a stroke of 260 mm, a throat depth of 410 mm, and a distance between columns of 2,600 mm, it provides a spacious working area where standard sheet sizes can be easily processed, while optimized speed values (approach 200 mm/s, bending 10 mm/s, return 180 mm/s) and a 7.5 kW motor power offer high production efficiency with low operating costs. At this fair, the B100-3100 is being exhibited with an integrated robot system; thanks to this robotic automation solution, part feeding, positioning, and bending processes are carried out seamlessly and error-free with minimal human intervention. This system, which can be transformed into a fully automatic production line, reduces labor costs while taking production processes to a new level in terms of capacity and repeatability.
