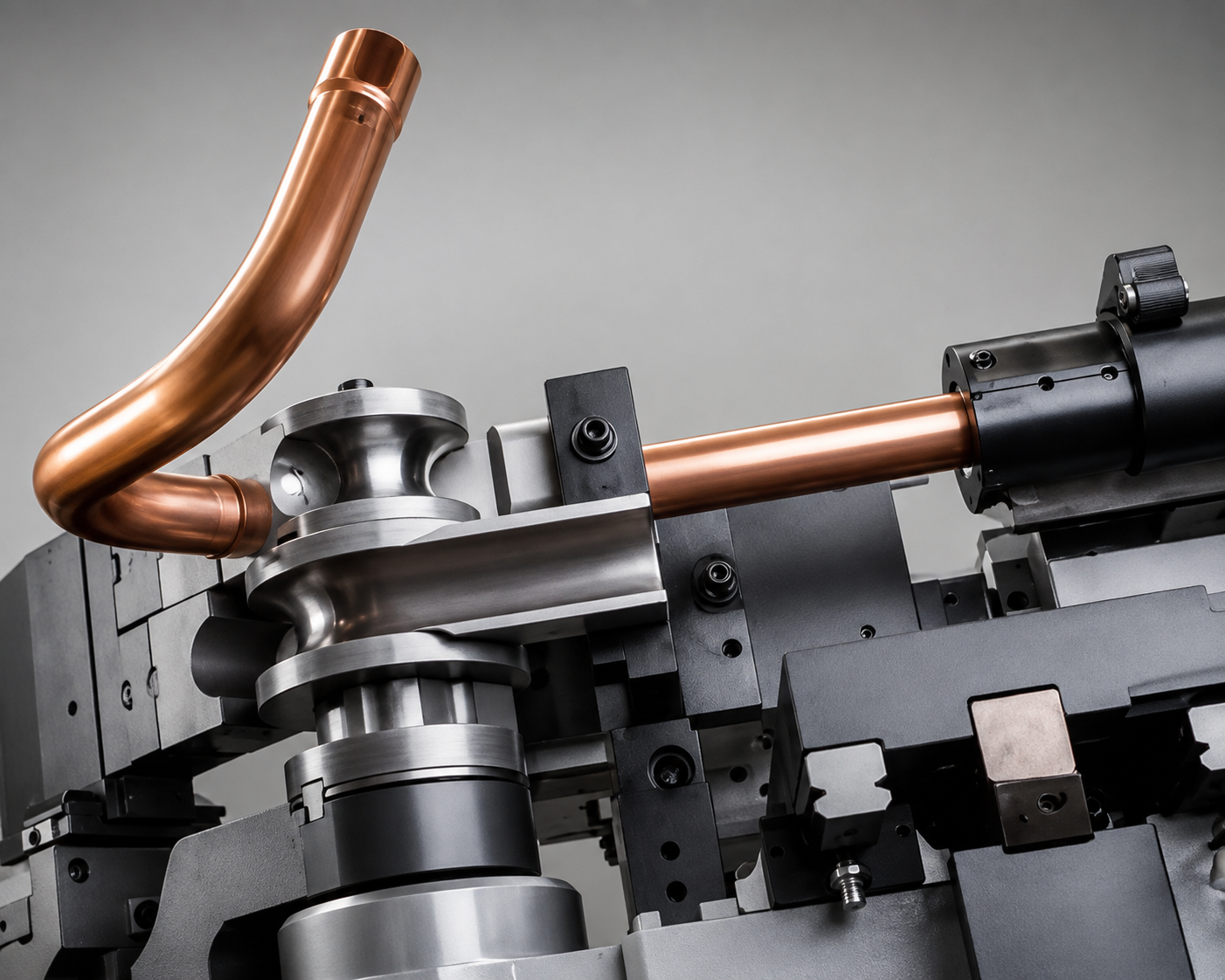

Why Do Rotary Draw Tube Bends Wrinkle, Flatten, or Slip Despite CNC Control?
CNC capability does not remove the need to understand rotary-draw tooling and its placement. Bend quality depends heavily on selecting tooling suited to the tube, fitting it correctly, and positioning it for the work being formed.
In rotary draw bending, the tube is drawn around the bend die. The clamp die holds the tube to that die, while the pressure die supports the straight, tangent portion during bending. Additional tools can provide support where the application requires it. A mandrel supports the tube internally, and a wiper die works at the inside-radius tangent to help prevent compression wrinkles.
For that reason, troubleshooting rotary draw tube bending defects should start with the visible defect and its location. An inside-radius wrinkle, excessive ovality, outside-radius flattening, and clamp movement do not point to the same setup condition. Identifying the symptom first helps focus the inspection on the relevant tool or control.
Identify the defect before changing settings
Troubleshooting guidance for draw bending emphasizes that most defects can be traced to setup. The useful first question is therefore not simply whether more pressure is available, but what condition is present and where it appears.
A practical defect classification includes:
-
**Inside-radius wrinkles**, which occur in the compression zone of the bend.
-
**Excessive tube ovality**, where the cross-section loses too much of its intended roundness.
-
**Inside-radius buckling or outside-radius collapse**, which call for an examination of internal support and its position.
-
**Terminal humps or excessive outside-radius flattening**, for which pressure-die assist can be an appropriate targeted adjustment.
-
**Clamp die slippage**, which concerns both clamping force and the contact surface available to retain the tube.
This approach does not provide a universal answer for every defect. It does, however, prevent unrelated changes from being used as a first response. For example, an assist setting intended for outside-radius flattening is not a substitute for examining a wiper die when wrinkles occur on the inside radius.
Check rotary draw tooling fit and basic tool functions
Rotary-draw tooling should be evaluated as a matched system rather than as interchangeable components. Clearance between the tube and the tooling can contribute to marking, wrinkling, or collapse. Tooling from a similar-size application should not automatically be assumed to fit the current tube and bend requirement.
The basic tools have distinct functions:
-
The bend die forms the radius around which the workpiece is drawn.
-
The clamp die retains the tube against the bend die.
-
The pressure die stabilizes the straight or tangent section during the bend.
These functions make tooling fit a relevant inspection point when defects persist. The inspection should consider whether the bend, clamp, and pressure dies are intended for the tube being formed and whether inappropriate clearance is present. Machine-specific instructions still govern the actual setup, but correct tool selection, fit, and placement remain important to bend quality, tool life, and process control.
Tube bend wrinkling and the wiper die
Inside-radius wrinkles arise because material is under compression on the inside of a rotary-draw bend. The wiper die is the tool associated with this area: it is positioned immediately before the inside-radius tangent and wipes the material to help prevent wrinkles.
When tube bend wrinkling occurs on the inside radius, inspect whether a wiper die is needed for the application and whether it is placed for its intended role at the tangent. A wiper die is not a guarantee that every wrinkle will disappear, because a bend can involve more than one setup factor. Still, its purpose directly addresses the compression condition present on the inside radius.
Application difficulty also matters. Thin-wall tube and tighter centerline radii may require mandrel-based internal support and other tooling. In contrast, a thick-wall tube bent to a large radius may not require a mandrel or wiper die. The available guidance does not establish a universal wall or radius threshold, so the tooling requirement must be assessed for the specific application.
Mandrel positioning for tube ovality and collapse
A mandrel provides internal support during bending. It is used to limit ovality and help prevent flattening, collapse, rippling, or wrinkling. Its role is particularly relevant in thin-wall work and tighter-radius bends.
For excessive tube ovality, inspect two conditions: whether the mandrel nose is undersized and whether the nose has been advanced sufficiently into the bend. Moving an undersized nose farther into the bend may provide a temporary improvement, but it is not the preferred correction. The stated optimum is a mandrel with the correct nose diameter.
Mandrel position also deserves attention when there is inside-radius buckling or outside-radius collapse. A nose positioned behind the tangent line is a condition to check. In that situation, setup guidance calls for advancing the mandrel past tangency in accordance with the applicable setup instructions.
The distinction between size and location is important. A mandrel may be present without providing the needed support at the needed point in the bend. Conversely, position should not be used to conceal a mismatched nose diameter when excessive ovality is the problem.
Use pressure-die assist for its intended defects
Pressure-die assist feeds material into the outside radius and is used to reduce flattening and wall thinning. The troubleshooting guidance identifies terminal humps and excessive flattening on the outside radius as the conditions for which assist may be relevant.
If the outside radius is acceptable, assist is unnecessary. If terminal humps or excessive flattening are present, begin at neutral pressure—or turn assist off where the machine uses that convention—and increase assist only until the flaw disappears.
This is a narrow, defect-specific adjustment. Pressure-die assist does not replace the wiper die's role in controlling inside-radius compression, correct an undersized mandrel nose, or increase the clamp contact surface available on a difficult part.
Assist should also be distinguished from boost. In the cited terminology, boost applies axial pressure through clamps behind the pressure die to the tube circumference. Assist feeds material into the outside radius. Machine builders may use different names for their controls, so operators should apply these distinctions according to the machine documentation and setup instructions.
Clamp die slippage: inspect grip and available contact length
Clamp retention depends on clamping pressure and on the contact surface available to the clamp. If the straight distance between bends is short, there may be limited material for the clamp to grip. A machine may compensate with more pressure or more aggressive grip surfaces, but both approaches have limits.
Clamp-die length is another relevant consideration. A short clamp die concentrates load on a shorter portion of the tube and is associated with greater deformation risk. One tooling recommendation is a clamp-die length of at least three times the workpiece diameter so the load is distributed over a larger area. This is a recommendation rather than a universal rule for every tooling design.
For clamp die slippage, inspect usable straight length, clamp contact, die length, and the limits imposed by the part geometry alongside clamping pressure. Increasing pressure can be part of a sound setup, but it should not replace an examination of whether the tube can be retained with the available contact surface.
Account for the bend application
Tooling needs are application-dependent. Thin-wall tube and tight bend radii can increase the relevance of internal support and additional tooling. Short straight sections between bends can reduce the contact surface available for the clamp. These are separate conditions, but each can affect which setup checks deserve the closest attention.
A thick-wall tube formed to a large radius may not need a mandrel or wiper die. A thinner-wall or tighter-radius application may require both internal support and tooling that manages the inside-radius compression zone. Likewise, a part with limited straight length can make clamp retention more demanding even when the bend itself is otherwise straightforward.
Keep corrections tied to the symptom
CNC capability still requires correctly selected, fitted, and positioned tooling. A useful response to rotary draw tube bending defects is therefore to identify the condition first and inspect the tool function most closely associated with it.
For inside-radius wrinkles, examine the compression zone and the wiper die. For excessive ovality, check mandrel nose diameter and advancement. For buckling or collapse, verify whether the mandrel nose is behind the tangent and follow the applicable instructions for advancing it past tangency. For terminal humps or excessive outside-radius flattening, use pressure-die assist as the targeted control it is intended to be. For slip, consider both clamp pressure and the contact length available to retain the tube.
That defect-led method keeps adjustments connected to the support, retention, and stabilization functions required during rotary draw bending.
