Fiber-Laser Alarm Recovery: Separate Pierce and Cut-Edge Observations
A fiber-laser interruption, alarm, or sudden quality change does not by itself identify the source of the problem. The available evidence supports a narrower, useful starting point for fiber-laser alarm recovery: separate what happened during piercing from what appears during established cutting, then consider the process-condition indicators relevant to the material and application.
That distinction matters because piercing and steady cutting are connected but not interchangeable. A clean pierce helps establish the conditions for a clean cut. Conversely, a poor or incomplete pierce can contribute to poor cut quality and may require rework.
Yet a poor edge does not prove that the pierce caused it, and a successful through-cut does not necessarily show that the pierce was suitable for the job.
The evidence also identifies beam parameters, assist-gas behavior, and optics as interacting contributors to a clean kerf. It does not provide a universal recovery sequence, prove that an alarm identifies a root cause, or specify how revised settings should be approved for production. The most defensible approach is therefore to interpret the available observations within those limits.
Start fiber-laser alarm recovery with the process stage
The first technical question is where the visible issue occurs. Does it arise before or at breakthrough, immediately after the contour begins, or later in an established cut? Framing the observation by process stage helps prevent an overly broad conclusion from a single symptom.
Pierce-stage observations
Piercing deserves separate attention because its condition can affect what follows. A clean pierce is described as setting the conditions for a clean cut, while a poor or incomplete pierce can lead to degraded cut quality. This relationship is important, but it is not absolute: not every later edge defect originates in the pierce.
A reported thick-steel test illustrates why piercing and through-cut performance should not be treated as the same measure. In that specific test, using oxygen assist gas with 5- to 10-mm steel and a 20-kW QCW fiber laser, acceptable through-cut quality did not mean the oxygen-piercing result was suitable. The oxygen pierce was characterized as difficult and unsuitable where faster, spatter-free piercing was needed.
The same reported setup found that low-peak-power oxygen piercing could be repeatable, but it took longer and accumulated spatter at low gas pressure, leading to periodic nozzle cleaning. That result is specific to the stated test conditions. It should not be generalized as a universal explanation for spatter or as a prescribed correction for other jobs.
Steady-cut edge observations
Once cutting is established, the edge provides a different category of evidence. Changes in material condition or incorrectly set parameters can reduce cut quality, with degradation particularly noticeable near the bottom of the cut edge. Rough striations and dross are identified as signs that molten metal is not being evacuated as intended.
These edge conditions are meaningful observations, but they do not establish one unique cause. They indicate an evacuation problem in the source material; they do not prove whether the relevant contributor is a beam condition, gas-flow behavior, optics, material condition, or another process factor.
For that reason, a useful technical description should remain specific: rough striations and dross indicate impaired molten-metal evacuation. It should not move directly from that observation to a claim that one particular parameter must be changed.
Laser cutting process conditions interact
A clean kerf is not attributed to one isolated input in the supplied evidence. Beam parameters, gas-flow dynamics, and optics are described as interacting factors. This means that a visible quality issue should not automatically be assigned to the stored cutting condition alone.
The evidence does not rank those factors or supply a fixed diagnostic order. It also does not establish that any single adjustment is the correct response to a particular alarm. What it does support is a more careful interpretation of the process: the kerf reflects interacting conditions rather than a single, universally identifiable setting.
Typical higher-power fiber-laser practice may use a focus position higher in the material for piercing and then move it lower in the kerf during cutting. This arrangement is described as helping the focus and assist gas evacuate molten material effectively. It is presented as typical practice, not as a universal setting or a validated adjustment for a specific machine, material, or defect.
That qualification is especially important when comparing pierce-stage evidence with steady-cut edge evidence. A focus approach used during piercing may not match the focus approach used after the contour begins. Treating the two stages as identical can obscure the fact that they serve different process purposes.

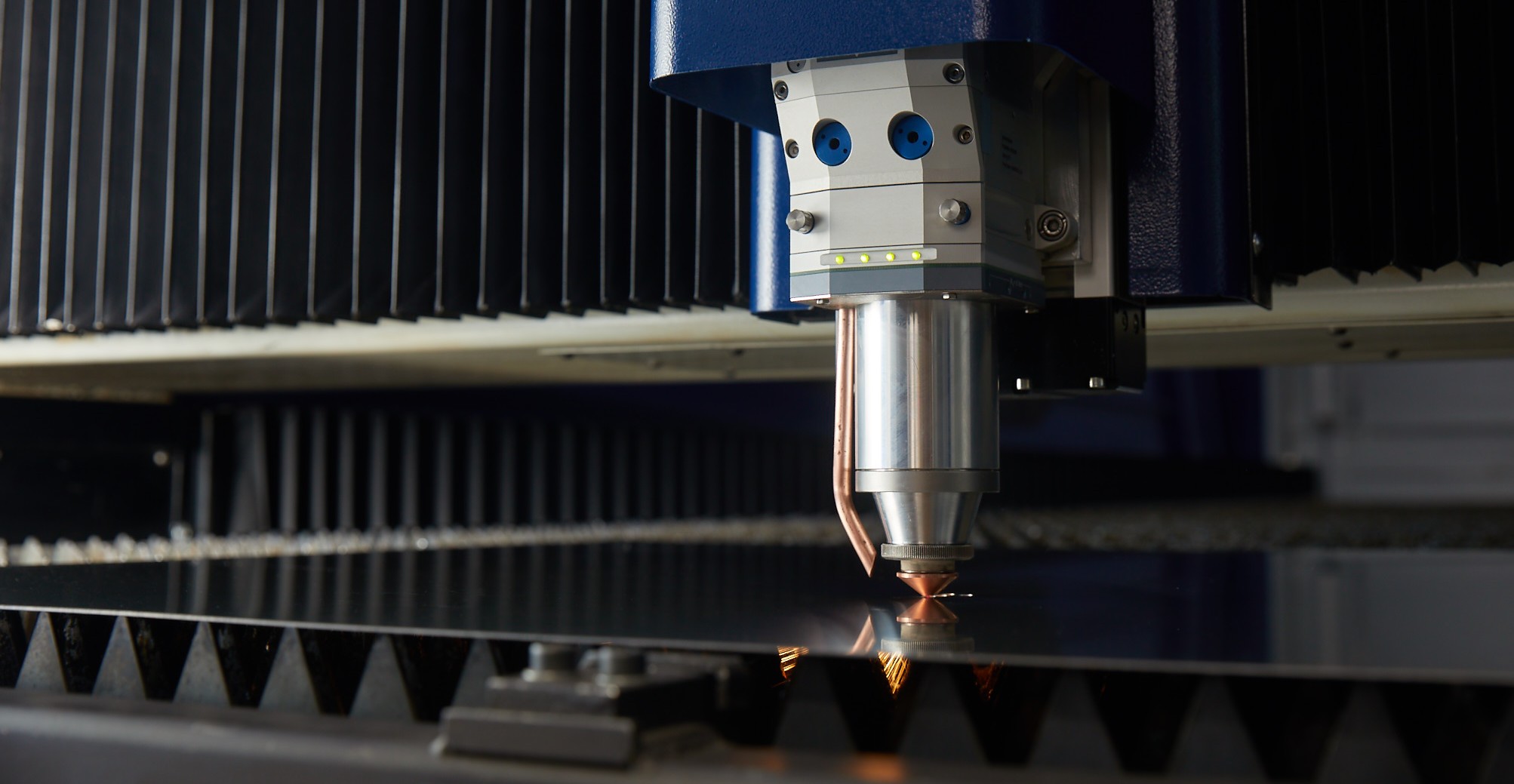

Optics and cut-edge quality
Optics are one of the process areas associated with cut quality. Contamination of fiber-laser cutting-head optics can cause serious problems, and the supplied evidence emphasizes that optical sensitivity is particularly important at higher power levels.
Manual interaction with the cutting head can also introduce risk. During a focusing-lens change, manual handling can contaminate the lens or the head. This does not mean every intervention causes contamination, but it does mean that lens or head condition cannot be assumed from the fact that work was recently performed.
In the context of fiber-laser cut-edge quality, optics should be considered alongside—not instead of—beam and gas conditions. The evidence supports their interaction in producing a clean kerf, but it does not identify a contamination threshold or establish that optics are the cause of a particular defect.
Reflective metals require added caution in attribution
For reflective metals, absorbed laser energy can vary with several changing conditions: alloy, surface finish, oxidation, contamination, temperature, beam angle, focal position, and the changing geometry of the interaction zone. These variables make a simple explanation less reliable.
The supplied guidance for reflective-metal instability states that increasing commanded power alone does not necessarily correct the process. Before an approved power adjustment, it identifies optic cleanliness, focus error, nozzle centering, stand-off stability, height sensing, and assist-gas flow as conditions to address.
This guidance is conditional. It concerns reflective metals and comes from a sector source rather than a universal process standard. It should therefore not be extended to all materials or used to claim that power is never relevant. Its supported lesson is narrower: under reflective-metal instability, commanded power alone is not necessarily the correction, and several physical process conditions may be relevant.
What monitoring can and cannot show
Where equipped, process-monitoring systems can observe piercing and cutting in real time. Pierce monitoring can allow a controller to detect when the pierce is through the material before the part cut begins. That capability relates directly to the distinction between piercing and later contour cutting.
For oxygen cutting of steel, equipped systems may also use burn or plasma detection intended to identify uncontrolled burning in the kerf associated with poor edge quality. This capability is specific to oxygen cutting of steel and to systems that include the stated functions.
Monitoring evidence has limits. It is not available on every machine, and the cited capabilities do not establish that a signal identifies the root cause of a defect. A monitoring indication can show an observed process condition or event; it should not be treated as conclusive proof that one component, setting, or material characteristic caused the event.
Keep the conclusion within the evidence
The strongest evidence-based conclusion for fiber-laser alarm recovery is not a universal reset procedure. It is a diagnostic distinction: identify whether the available observation concerns piercing, established cutting, or both; recognize that rough striations and dross point to impaired molten-metal evacuation; and account for the interaction of beam parameters, gas-flow dynamics, and optics.
For reflective metals, the range of potentially relevant conditions is broader still, and a commanded power increase alone may not resolve instability. Where monitoring is installed, it can provide real-time information about piercing or cutting behavior, but it does not independently prove why the condition occurred.
Individual shops may establish their own administrative controls for recipes, records, trials, or production approval. The supplied evidence does not prescribe those governance practices. It supports a more limited technical discipline: avoid treating a pierce observation as identical to a steady-cut edge observation, and avoid assigning a quality event to one setting before considering the interacting process conditions.
How to Quarantine, Inspect, and Requalify Damaged Press-Brake Tooling
Damage to a punch, die, tang, seating surface, V-groove, or working radius is not simply a maintenance issue. It can affect how the tool seats, where the sheet contacts the die, how load is transmitted, and whether the resulting bend remains repeatable. For that reason, press-brake tooling requalification should begin with removing suspect tooling from use—not with an immediate attempt to clean it up and continue production.
The central discipline is straightforward: stop when tooling condition, material behavior, setup condition, or machine motion appears abnormal; evaluate the tooling under approved procedures; confirm that the intended bend remains within all applicable limits; and verify the reinstalled setup through a representative, measured test bend. A tool that looks acceptable is not necessarily ready to return to service.
Start press-brake tooling requalification by taking the tool out of use
When damage is visible or suspected, stop the work and follow the machine manual and applicable workplace safety procedures. The appropriate safeguards and site procedures govern how the setup is made safe and how tooling is removed. A damage event should not be treated as an opportunity to keep forming parts until a convenient stopping point.
Once removed, visibly damaged tooling should be kept out of normal use under site procedures. If it is not being discarded or sent for repair, it should be clearly marked so it cannot be returned accidentally to a press-brake setup. The objective is practical control: a questionable component should not re-enter production merely because it is stored near serviceable tools.
This separation also protects the evaluation itself. A punch or die may show a localized burr, galling, a gouge, or deformation that is easy to notice. But the visible condition is only the beginning of the decision. Damage can coexist with impaired mating surfaces or changed working geometry that will matter only when the tool is clamped and loaded.
Clean contact surfaces before press-brake tooling inspection
Inspection should distinguish between removable contamination and damage to functional geometry. Before tooling is mounted, inspect the machine bed, die holder, punches, dies, and clamping interfaces for both contamination and damage. Chips, mill scale, and other debris beneath a die can prevent the tool from receiving full support. Under load, that incomplete support can contribute to uneven bends and further damage.
Contact surfaces should be cleaned with an appropriate non-damaging method before mounting. This is an important but limited step. Cleaning a seating surface is not the same as restoring a working radius, die shoulder, V-groove, or tang. A cleaning decision addresses contamination; it does not establish that damaged geometry is acceptable.
The inspection should include the interfaces that locate and support the tooling as well as the surfaces that contact the workpiece:
punch tangs and their retention interfaces;
die seating surfaces and the machine-side support surface;
clamping and holder interfaces;
V-grooves and die shoulders; and
punch working radii and other active forming surfaces.
Look for galling, deep scratches, burrs, gouges, and deformation. Such conditions can keep a tool from seating correctly, mark the part, or change bending behavior. A defect at a die shoulder deserves particular attention because it can change the sheet’s contact points. That can increase friction, encourage part movement, and reduce bend repeatability. If shoulders are worn or deformed, the nominal die opening may no longer represent the geometry actually presented to the sheet.
Do not use appearance as the release criterion
A visual check can identify a problem, but it cannot by itself establish dimensional condition where geometry matters. Approved inspection and measurement methods should be used rather than visual judgment alone. The applicable procedures determine how condition is assessed and what requirements apply; a shop should not substitute an informal visual verdict for those controls.
This distinction is especially important after material has galled on an active surface or a burr has formed near a seating interface. A tool may appear cleaner after attention, yet still have altered support, contact, or working geometry. The question is not whether the surface looks improved. The question is whether authorized evaluation confirms it is fit for the proposed operation.
Decide whether damaged press-brake tooling can be cleaned, repaired, replaced, or held
The disposition decision should remain within authorized procedures and the tooling manufacturer’s guidance. Unapproved grinding, shimming, disassembly, modification, rework, or repair should not be used to force a tool back into service. These actions can alter tool geometry, support conditions, or load behavior without establishing that the result is acceptable.
Accordingly, the evaluation should not rely on universal rules such as “a burr can always be removed” or “a shallow gouge is harmless.” The significance of a defect depends on where it is located, how it affects seating or material contact, and the intended bending application. A defect that appears minor on a non-contact area may be treated differently from one at a punch radius, die shoulder, V-groove, tang, or seating surface.
A controlled outcome may be to discard the tool, send it for authorized repair, retain it for further evaluation, or release it for reuse after approved inspection. The key is that return to service is a decision supported by inspection and the proposed application—not an assumption based on the fact that the tooling can still be installed.
Recheck tooling load limits for the intended bend
Before reusing a tool that has passed the applicable inspection process, review the proposed bend as an actual setup. Use the actual material, thickness, bend length, die opening, bend method, required radius, and tooling arrangement. General charts and rules of thumb are estimates unless they have been validated for the specific material and tooling combination.
Then compare the required load with the applicable limits for the press brake, tooling, and support conditions. The machine nameplate tonnage alone does not authorize a setup. Depending on the arrangement, the governing limit may involve concentrated loading, a short bend length, off-center loading, or the ratings of the holder, adapter, clamp, punch, or die.
The safe setup is limited by the lowest confirmed applicable rating. This review matters after a damage event because a tool that is being considered for reuse must be evaluated in the context of the load and forming method it will actually see. A tool should not be requalified abstractly and then assigned to any job without regard to the specific bend conditions.
Reinstall with verified seating, alignment, and retention
Controlled reinstallation is another inspection point, not merely the final handling step. Install the tooling using the machine manufacturer’s approved procedure and confirm that it is correctly seated, aligned, and secured. Compatibility also requires confirmation against the documented machine stroke, throat depth, shut height, holder interface, retention method, and rated capacity.
Seating and alignment errors can create uneven contact and produce inconsistent angle, twist, or variation along the bend line. Those outcomes may resemble a problem with material or tooling geometry, even when the root cause is an improperly supported or retained setup. Rechecking the bed, holder, clamp, punch, and die interfaces before installation helps prevent contamination or damage from being carried into the requalification trial.
The reinstallation stage should therefore answer several practical questions: Is the tooling fully supported? Are the mating surfaces clean? Is the tool aligned and securely retained by the approved method? Does the assembled configuration match the load review? If any answer remains uncertain, the setup is not ready for a meaningful test bend.
Use test-bend verification to confirm return to service
A representative test bend provides the evidence that inspection and installation alone cannot. It can reveal springback, bend-location error, radius issues, surface-condition problems, and inconsistency in the formed result. Measure after unloading so the observed result includes springback.
The applicable drawing and process requirements determine the acceptance characteristics and tolerances. Depending on those requirements, the test-bend review can include:
bend angle;
flange position or flange length;
bend-line straightness;
inside radius where relevant;
twist and bow;
surface condition; and
part-to-part variation.
An acceptable single bend demonstrates that the setup can work under the conditions of that trial. It does not establish the same level of confidence as repeated acceptable results across bed locations and operating conditions. Where process stability matters, repeated results provide stronger evidence than one visually satisfactory part.
This is why visual acceptance cannot be the final release criterion. A tool may look sound after cleaning and may appear to seat correctly, while a measured bend reveals a changed radius, inconsistent angle, marking, movement, or variation along the bend. The formed part is the final check on whether the tooling, machine interfaces, load conditions, and setup are working together as intended.
Conclusion: release tooling only after evidence supports the setup
A disciplined response to damaged press-brake tooling protects both the tool and the bending process. Remove suspect components from use, keep them clearly identified against unintended reuse, inspect and clean mating surfaces appropriately, and evaluate active geometry and support interfaces through approved methods. Do not treat unapproved rework as a substitute for authorized repair or replacement.
For tooling that is considered for reuse, complete the press-brake tooling requalification process by reviewing the actual bend and all applicable load limits, reinstalling the setup with verified seating and retention, and measuring a representative test bend after unloading. That sequence turns a subjective visual decision into a controlled return-to-service decision based on tooling condition, setup limits, and formed-part results.
Electronic Press-Brake Instructions: Point-of-Use Guidance, Not Automatic Verification
Electronic press-brake instructions place key job references at the point where bending takes place. Depending on the machine and system configuration, an operator can access digital job materials—including a job-summary PDF and a 3-D part drawing—without leaving the brake for a separate computer.
That access can assemble the intended process in one location: part references, tooling layout, bend steps, backgauge and ram locations, material and tooling details, and handling notes. Digital work instructions can pair written directions with visual guidance, giving operators several ways to interpret the job.
The essential distinction is between communicating a plan and confirming physical conditions. A screen can present the intended setup and bend process. It does not, by itself, establish the tools installed in the machine, the blank at hand, the condition of the setup, or the conformance of a formed part.
What electronic press-brake instructions can show
A press-brake job requires more than a dimension list. The operator may need to identify the part, arrange tools along the bed, work through a planned bend order, refer to position information, and account for handling details. Electronic press-brake instructions can organize these references at the machine.
Advanced brake-control software can offer visual cues for tool loading and part bending. These cues can reduce some of the guesswork and trial-and-error involved in setup. Offline programming and 3-D tooling views can also give the operator information before production reaches the brake, including required tools, intended setup, tool placement, clearances, and bend sequence.
These are information-delivery and visualization capabilities. Their availability depends on the equipment and instruction system in use; they should not be assumed for every press brake.
Tooling layout and visual press-brake setup guidance
A setup record can depict tool locations along the press-brake bed with a simplified ram-and-bed drawing. This type of tooling layout gives the operator a direct reference for the planned arrangement while working through setup.
Visual content can be particularly useful when a difficult setup or a specific part detail is hard to explain with text alone. Pictures can also help communicate instructions where language fluency is a concern. Drawings, images, and 3-D tooling views supplement written information by showing the planned relationship among the part, tools, and machine.
Drawing access should be described carefully. The available evidence supports making drawings and job references available at the brake. It does not establish revision-control logic, identify a displayed file as the current released revision, or guarantee that the displayed document is the released version.
Bend sequence and position information
Electronic press-brake instructions can provide a step-by-step bend sequence. Individual bend steps can include backgauge location and ram location, creating a structured reference as the operator progresses through the part.
For staged bending, tool arrangement and bend order can influence operator movement and process flow. In that specific context, an order that avoids repeated travel between distant tool stations is described as more efficient. This is a consideration for staged-tooling arrangements rather than a universal sequence rule for all parts or brake setups.
Displaying sequence and position details at the machine makes the planned process easier to retrieve during production. It also keeps the bend order associated with the other job references instead of requiring the operator to consult separate materials.
Material, tooling, and handling notes in digital work instructions
Setup documentation can include material and tooling information, along with a field for special handling notes. Protective packing instructions are one documented example. Bringing these notes together with setup and bend details helps keep the job's intended information in a common point-of-use reference.
The evidence supports handling-note fields and the protective-packing example, but it does not define every exception an instruction template might need. A department can distinguish the supported core information—tooling, material, bend steps, and handling notes—from additional fields it chooses for its own workflow.
This approach makes the instruction record a useful organizing tool. It does not turn a listed material or tool into confirmation of the material or tool physically present.
Why guidance differs from physical evaluation
The information on an instruction display describes how a job is intended to proceed; it is not an observation of the actual machine, blank, or formed bend.
Material variation can affect bend behavior even when an operator holds the workpiece firmly against the stops. The cited variables include material thickness and grain direction. As a result, complete and accessible instructions can support the planned forming process without independently establishing the outcome of a physical bend.
Traditionally, the press-brake setup role has included making test pieces and measuring results against job specifications. That history illustrates the difference between supplying process information and evaluating a result. It does not create a universal requirement for a particular verification method or frequency.
This boundary does not reduce the value of electronic press-brake instructions. Their contribution is to make the intended setup and execution details accessible, organized, and easier to follow at the point of use. Claims that the interface itself confirms tooling, material, setup condition, or dimensional conformance extend beyond the capabilities established here.
Connected digital work instructions: a developing possibility
Connectivity with PLCs and sensors has been described as having the potential to turn a digital instruction interface into an automated quality-control tool for manual activities. That is a forward-looking possibility, not a general characteristic of electronic work instructions.
The available evidence does not show that PLC and sensor connectivity automatically validates tool identity, actual material, completed setup condition, or the dimensional conformance of a produced part. Those distinctions remain important when defining the role of a connected instruction interface.
A focused role at the press brake
Electronic press-brake instructions offer a practical way to consolidate job references where bending work occurs. A point-of-use display can bring together drawing access, tooling layout, bend sequence, backgauge and ram details, material and tooling information, and special handling notes.
Used in this role, digital work instructions make the intended setup and bend process easier to access and interpret at the machine. Visual cues and organized information can reduce some guesswork, while physical conditions and forming results remain distinct from what the display alone can demonstrate.
When Repeated Air-Bend Corrections Call for a Forming-Method Review
An air-bent angle that repeatedly drifts outside a tight requirement is not automatically a programming problem. Punch travel can be adjusted, but a stable result still depends on the interaction of die geometry, material response, springback, and the contact conditions of the forming method.
The appropriate response to recurring air-bend angle variation is therefore not unlimited adjustment. First, confirm the specified geometry and tolerance, the actual material controls, and the air-bending setup. Then establish compensation using representative material and a validated process. If air bending still cannot reliably meet the requirement, review and qualify a higher-contact method rather than assuming that a familiar setup can simply be pushed further.
When air-bend angle variation signals a process review
Air bending has an inherent setup relationship that matters when tolerances are tight. The sheet rests on the two shoulders of the V-die while the punch applies force between them. Under normal air-bending conditions, the sheet does not contact the bottom of the die. The final angle is consequently influenced by punch penetration or travel, the V-die opening and geometry, material response, and springback.
That relationship explains why a correction can work on one piece yet not establish a dependable process. A change in punch travel may compensate for the behavior observed in one trial, but it does not remove the sources of variation that caused the behavior. When subsequent pieces continue to require different corrections, the useful question changes from “What adjustment is needed now?” to “Which process input is not controlled or not suitable for the stated requirement?”
A review is warranted when approved compensation cannot be maintained across representative material and the final angle remains outside the drawing requirement. This does not mean that air bending is necessarily unsuitable. It means the method, tooling, material condition, and requirement need to be considered as a system before more production parts are used to chase a result.
Trace air-bend angle variation to material and recovery
Material behavior is central to air-bending repeatability. Thickness variation, strength, grain direction, and material condition can alter springback and affect the final angle. After the load is removed, elastic recovery can open the angle from the condition seen while the punch is still applying force. The amount of recovery can vary with alloy, thickness, hardness, and other material conditions.
This is why a nominal material description alone is not a sufficient basis for assuming one compensation value will apply to every sheet. Batch-to-batch behavior, actual thickness, and grain direction can all affect the result. A process that appears stable on one set of blanks can respond differently when those conditions change.
Use representative material to establish springback compensation
Compensation should come from approved process data, suitable trial parts, or validated production procedures. It should not be treated as a universal overbend value for every sheet carrying the same nominal material designation.
A representative-material test bend provides a disciplined way to evaluate the actual combination of stock and setup before production. It can reveal final-angle variation, springback, cracking, and surface marking. That scope is important: a successful test is evidence for the material condition and setup that were tested. It is not proof that untested material conditions will perform identically.
When material variation is suspected, the review should include material identity, actual thickness, grain direction, and applicable material documentation. Those checks help distinguish a setup issue from a change in the workpiece behavior that the setup must accommodate.
Review the air-bending setup before changing methods
A method change should not be the first response to every angle problem. Air bending itself deserves a complete setup review, beginning with the required geometry and tolerance. The bend length, intended method, clearances, material information, and specification all belong in process and die selection.
The V-die opening is especially significant. In air bending, it is a major determinant of both the inside bend radius and the required force. A wider opening produces a larger air-formed radius and reduces required bending force. A narrower opening raises the tonnage demand. If the opening is too narrow, it can create a risk of damage to the machine or tooling.
The frequently used guideline of selecting a V-opening around eight times material thickness may be a starting point for some mild-steel air-bending work, but it is not a universal selection rule. Material data, tooling documentation, required radius, and machine limits must govern the final choice. Punch-tip suitability also matters; an unsuitable punch can affect air-forming results even though the die opening has a major influence on the formed radius.
Tooling condition and geometry deserve the same attention. They influence the size and shape of the inside radius along with material behavior. In air forming, the radius forms as a percentage of the die opening. This differs from bottom bending, where the formed radius can take on the punch-nose radius. A change in tooling geometry can therefore affect more than the angle; it can also affect the part’s radius condition.
Before any adjustment or tooling change is accepted, planned load must be checked against both press-brake capacity and the rated-load limits of the installed punch and die. Total machine capacity is not, by itself, proof that every installed tooling configuration is acceptable. Tool ratings can depend on the tooling and on how the load is distributed along it.
Qualify bottom bending or coining as a new process
If the requirement remains unmet after the air-bending inputs have been reviewed and validated, a higher-contact forming method may deserve evaluation. Bottoming uses closer workpiece contact with the die geometry than air bending. Coining imprints the material more fully into the tooling. Both methods require higher force than air bending.
Bottom bending may provide greater consistency, but that possibility is not a guarantee that it will satisfy a particular angle tolerance. It also brings higher tooling and machine loads. Coining likewise imposes high load and tooling stress. Its use requires approved tooling, verified capacity, and qualified operation.
The key point is that an air-bending setup cannot be presumed suitable for bottoming, coining, or another higher-contact approach. The required loads and tooling conditions can be substantially different. A decision to move beyond air bending must therefore be treated as a separate application review, not as a deeper press stroke on the existing setup.
What forming method qualification must establish
Qualification should confirm the intended tooling, forming conditions, and rated machine capacity for the proposed method. It should also use representative material to evaluate the resulting angle, radius, springback behavior, cracking, and surface marking.
This approach keeps the decision tied to evidence. It recognizes that greater contact and higher force can alter the forming response, while avoiding the unsupported assumption that either bottom bending or coining will automatically remove all angle variation.
A decision path for recurring air bending tolerance issues
A practical sequence helps prevent a cycle of production-part corrections:
1. Confirm the requirement. Review the specified geometry and tolerance along with the bend length, intended method, clearances, and applicable material information. This is a review of the requirement and process basis, not a unilateral change to the drawing.
2. Establish the material condition. Verify material identity, actual thickness, grain direction, and relevant documentation. Consider whether batch-to-batch behavior could be changing springback.
3. Document the air-bending geometry. Identify the punch, V-die opening, tooling condition, and intended radius relationship. Check whether the chosen opening is appropriate for the material, required result, tooling documentation, and machine limits.
4. Validate compensation.Run suitable bends with representative material and establish overbending from approved process data or validated trials. Evaluate final angle as well as cracking and surface marking.
5. Verify load limits. Check the planned load against the press brake and the installed punch and die ratings, including the relevant load distribution.
6. Qualify an alternative only when necessary. If validated air bending cannot reliably satisfy the requirement, assess bottom bending, coining, or another higher-contact method as a new setup with its own tooling, load, and representative-material qualification.
Conclusion: resolve air-bend angle variation with evidence
Repeated adjustment is a warning that the process may be relying on a compensation that has not been established for the material and tooling actually in use. The disciplined response is to examine the requirement, material behavior, V-die geometry, tooling condition, and load limits before deciding that air bending has reached its practical limit for the job.
Where air bending cannot be validated to meet the stated tolerance, a higher-contact method may be appropriate. But greater forming contact comes with substantially different load and tooling demands, and it still requires proof on representative material.
The objective is not to select a more forceful method by assumption; it is to establish a forming process that is qualified for the requirement.
How Should a Fabricator Plan and Verify a Tandem Press Brake Setup for Long Parts?
Long workpieces require more than additional press brake bed length. In a tandem arrangement, the workpiece, force distribution, tooling, duplicated program data, physical alignment, support, ram movement, and measurement approach must be planned together.
A tandem press brake setup should therefore be treated as a distributed forming process. The objective is to coordinate the paired brakes around the part and its bend sequence—not simply to place two machines beside each other. That coordination includes physical alignment, compatible program data, load distribution across the workpiece, and trial-bend checks for angle variation.
Those checks have an important limit. They help establish and assess the forming setup, but they do not by themselves demonstrate that the completed long part satisfies every drawing requirement. Final acceptance still depends on verification of the applicable dimensions, tolerances, visual requirements, and other specified characteristics.
Begin with the drawing and complete part geometry
Start from the current drawing revision. Confirm the specified material, thickness, surface condition, applicable grain direction, bend angles, radii, dimensions, tolerances, and visual requirements. These inputs must remain consistent through setup, trial work, and production verification.
Material should not be identified from appearance alone. A material change can affect required bending force, formed radius, springback, flat development, and gauging. The setup should account for the identified material and its specified condition before force, tooling, or program decisions are finalized.
Evaluate the workpiece as a formed three-dimensional part, not only as a bend line with an overall length. Length matters in tandem work, but formed-part width also matters. The two central C-frame uprights restrict the available bending window, so the formed part must fit within the depth allowed by those uprights.
The geometry review should also cover the intended bend sequence. Multi-bend parts can require clearance for flanges that have already been formed, particularly around the upper tooling. Tool selection and layout need to accommodate the component geometry and the planned sequence.
In general, thicker material is associated with a larger bend radius and die opening. That relationship does not select tooling by itself. The selected tooling must also suit the specified geometry and allow the planned bends to be made with the necessary clearance.
Evaluate capacity across the full bend length
Bending capacity is specific to the combination of bend length, sheet thickness, bend radius, and bend angle. Required force rises with bend length, external bend angle, and thickness, while a larger bend radius reduces the required force. Capacity planning should therefore assess the actual part and bend conditions rather than rely on nominal machine capacity alone.
For long-part bending on tandem brakes, the calculated bending force must be distributed over the full workpiece length. It should not be concentrated at the middle of either individual brake. A deviation in bending power on one brake can adversely affect the other.
Practitioner guidance for tandem arrangements also states that tonnage per unit length should be identical across both brakes, including arrangements where the individual brakes have different bed lengths or total bending capacities. The cited guidance does not define a calculation basis or permissible imbalance limits, so the applicable equipment documentation and established procedures remain relevant.
For hydraulic tandem equipment, repeatedly applying forming pressure only to one side can create uneven cylinder loading and may contribute to premature hydraulic-component wear. This is a specific repeated one-sided loading condition, not a general conclusion about every tandem configuration.
Establish tandem press brake alignment and synchronized motion
Initial physical alignment of the paired beds is critical. Alignment hardware can include brackets, push-pull bolts, and fastening bolts used to hold the beds in position. The applicable equipment documentation and workplace procedures should govern the alignment method and any acceptance criteria.
Physical alignment is distinct from synchronized machine motion. During tandem operation, the control system synchronizes the machine cylinders at short intervals so that ram motion remains straight as tooling enters the workpiece. This operating feature does not eliminate the need for adjustments and corrections when precision comparable to stand-alone operation is needed.
It is useful to keep three checks separate:
Alignment addresses the physical relationship of the paired beds and tooling.
Synchronization addresses coordinated ram motion during the bend.
Part verification addresses whether the completed workpiece meets drawing requirements.
These activities are related, but one does not replace another. Tooling alignment alone is not evidence that the part can be formed to specification, that loads remain within applicable ratings, or that the part can move safely through the full bend sequence.
Keep programs, tooling, and gauging mutually consistent
Tandem programming is normally planned as two machine-side portions of one part. Create the program for one brake and one half of the workpiece, then duplicate it on the other brake. The goal is to maintain matching program data across the paired process.
The drawing, bend sequence, bend method, tooling, load limits, gauging, program data, trial bend, and production verification must remain mutually consistent. A change in one element can affect the others. For example, changing tooling can affect available clearance and formed radius, while a material change can affect force and springback.
Gauging requires attention on long parts. In typical press brake work, the short flange is gauged while the long flange projects from the machine. Blank tolerances can therefore appear in finished-part overall dimensions. Duplicated programs do not remove that dimensional sensitivity, so the inspection approach should address the applicable drawing dimensions.
Tool layout should likewise be reviewed across the complete bend length. Tool selection and placement need to support the required geometry, the planned load distribution, and clearance for formed flanges. Tooling seating and alignment are also relevant during investigation of observed angle variation.
Include material support and safe handling in the setup plan
Long sheets introduce handling considerations before, during, and after the bend. Large press-brake sheets often require two operators, and formed sheets may move or rotate unexpectedly during bending, especially when parts are large or awkward.
Material support and movement should be included in the setup plan rather than considered only after programs and tooling are prepared. Setup, handling, and operation should follow the machine manual, workplace risk assessment, applicable regulations, and established lockout, training, inspection, and maintenance procedures. Safety systems should not be bypassed or altered.
Support conditions also matter during angle comparison. For the five-location long-bend diagnostic check, maintain the same measurement method and the same part-support condition at every location.
Tandem work may involve multiple operators and a shared long workpiece. Operation should follow the workplace's documented safe-work and training procedures, along with applicable machine guidance and risk-assessment requirements. The supplied guidance does not establish a universal communication protocol, operator-position arrangement, or lifting-device selection method.
Use a press brake trial bend to assess angle variation
A trial bend provides a structured check of angle variation along a long bend. Inspect the angle pattern at five machine-coordinate locations:
1. Left end 2. Left quarter 3. Center 4. Right quarter 5. Right end
Use the same measurement method and part-support condition throughout this comparison. This pattern is a diagnostic check for angle variation, not a complete inspection plan for the finished part.
A smooth pattern with a center that is more open than both ends can indicate insufficient compensation for loaded-machine deflection. A tighter center can indicate excessive compensation. These observations are possible indications rather than conclusive diagnoses.
A one-sided angle pattern should not automatically be attributed to crowning. Possible contributors include alignment, tooling seating, support, blank position, and material variation. The appropriate investigation should consider these potential contributors instead of assuming a single cause.
Increasing bending force is not necessarily a remedy for long-bend angle variation. Additional load can increase elastic deformation in the ram, bed, tooling, and frame. Where the variation is deflection-related, added force may not resolve the observed pattern.
When trial-bend results require correction, reconnect the review to the identified material and condition, tooling and seating, full-length force distribution, blank position, support condition, and paired-machine coordination. Any correction should keep the drawing, program, bend method, tooling, gauging, and verification activities consistent.
Separate setup evidence from final-part acceptance
A tandem arrangement can be physically aligned, synchronized, consistently programmed, and checked with a five-point angle pattern while the part still requires final inspection. The five-point check addresses angle variation along a long bend. It does not prove compliance for profile, flange length, overall dimensions, visual criteria, assembly fit, or every other drawing requirement.
Final verification should return to the completed-part requirements on the drawing. Check the applicable dimensions, tolerances, bend angles, radii, visual criteria, and other specified characteristics. The exact measurements depend on the drawing and part geometry.
Keeping setup coordination separate from product acceptance also supports more focused troubleshooting. A center-to-end angle pattern can warrant review of compensation and deflection-related behavior. If bend angle is acceptable but an overall dimension is not, blank tolerance and the normal relationship between the gauged short flange and the projecting long flange may require attention.
Conclusion
A reliable tandem press brake setup begins with the current drawing, the identified material, and the complete part geometry. It requires evaluation of capacity across the full bend length, consideration of the central upright constraint and formed-flange clearance, initial bed alignment, synchronized operation, duplicated machine-side program data, and planned tooling and support.
A trial bend and five-location angle comparison can help identify long-bend variation when measurement and support conditions remain unchanged. That setup work is valuable process evidence, but final acceptance remains a separate task: verify that the completed part meets the applicable drawing requirements.
