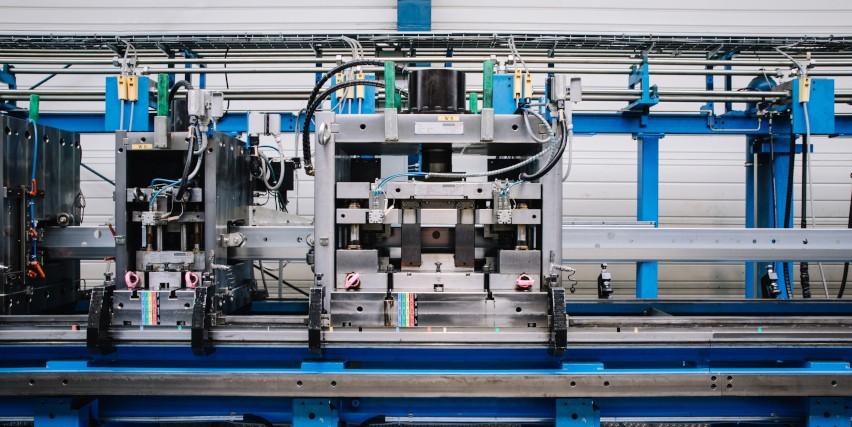

How to Choose Pre-Punch, Mid-Line, or Post-Punch Operations in Roll Forming
Roll forming punch placement is a production-sequence decision. In roll forming, a long sheet-metal strip moves through consecutive roller stands, with each stand adding an incremental portion of the final cross-section. Holes, notches, embossments, and shear-type features can be incorporated within that line before forming starts, during the forming process, or after the profile is formed.
Those positions are commonly described as pre-punching, mid-line punching, and post-punching. Cut-to-length production adds another sequencing choice: material can be cut into individual blanks before the roll mill, or the formed profile can be cut afterward.
No single rule in the available evidence assigns every feature to one punch location. The useful starting point is to follow the strip through the actual forming sequence and review where the feature is made, what forming remains after that point, and how punching, length control, and cutoff are ordered.
Start with the roll-forming sequence
A finished roll-formed section is created progressively rather than in one bending event. At the line entry, the material is flat strip. Between stations, it has an intermediate shape. At the exit, it has reached the completed cross-section. These stages create three broad positions for an integrated feature operation:
-
Pre-punching: punching occurs before roll forming begins.
-
Mid-line punching: punching occurs during roll forming, between forming stations.
-
Post-punching: punching occurs after roll forming is complete.
Some lines use one punch or cutoff application, while others combine multiple punching or cutoff applications. The evidence does not identify an optimal number of stations. It does show that the order of piercing, forming, measuring, and cutting should be considered as one sequence.
A process map can make that sequence visible. It should show the forming stands, each required hole, notch, embossment, cutout, or shear-type feature, and the point where final length is established. For every possible feature station, the map should distinguish among flat strip, the intermediate form, and the finished profile.
Roll forming punch placement and downstream forming
The central question is what happens after a feature is made. A pre-punched feature travels through all subsequent forming stands. A mid-line feature travels through only the remaining stands. A post-punched feature is made after roll forming and therefore does not pass through later forming stands.
This difference can matter when later forming stretches or reshapes the material around a feature. One cited roll-forming example states that mid-line notching may be necessary where punching before forming would cause undesirable stretching. That example is conditional; it does not establish that holes or notches generally belong in the middle of every line. It does demonstrate why the remaining pass sequence should be reviewed before assigning a feature to the entry end.
The intermediate shape also matters to the review. A mid-line station is not working with flat stock or necessarily with the final cross-section; it works with the strip condition created by the preceding stations. The supplied evidence does not support a universal placement rule based on accessibility or finished-profile shape alone. Instead, the proposed station can be assessed alongside the downstream forming it leaves in the process.
Pre-punching in roll forming
Pre-punching is the sequence in which features are created in flat strip before the strip enters the roll mill. It places the operation ahead of all forming stands, so the punched feature will experience the complete downstream forming path.
The supplied evidence provides a qualified observation for **welded roll forming**. In that context, pre-punching is usually preferable for accurate hole placement when the holes are located appropriately for subsequent forming. The same source states that correctly located pre-punched holes generally retain their shape during forming, while holes near a corner can still change shape. These findings are limited to the cited welded-roll-forming context and do not establish a general rule for all roll-formed products.
Pre-punching should also be considered with the later relationship between feature location and part length. In programs that pre-punch, then roll form, then cut off parts, roll-forming stretch can amplify the effect of material variation on feature locations and part length. The cited source identifies material-property variation, particularly yield-strength variation, as a factor that can affect stretch in that sequence and make precise parts more difficult.
That does not mean every pre-punched part will have a location problem. It identifies a sequence-specific source of variation to consider where feature position and final length are important requirements.
Mid-line punching between forming stations
Mid-line punching takes place after the strip has received some bends but before the profile is complete. It offers a third position between punching all features in flat strip and waiting until the end of the line.
The documented notching example explains one reason for using that position: moving an operation later in the mill can change the amount of subsequent forming experienced by the feature. Since the strip remains only partly formed, a mid-line feature still passes through the stands that follow it.
A pass-by-pass review is therefore useful when considering mid-line punching. The review can identify the strip shape at the proposed station and the forming operations that remain after punching. It can also place the feature operation on the same map as the length-control and cutoff steps.
For applicable high-speed work requiring cutouts and formed features, rotary dies can create those features at rates above 100 feet per minute. This is a capability described for suitable high-speed applications, not a statement that rotary tooling fits every feature, material, or station location.
Post-punching roll formed profiles
Post-punching occurs after roll forming is complete. In the documented sequence of pre-punching, roll forming, and cutoff, post-punching critical features can eliminate the variation associated with stretch and material-property variation in that pre-punching sequence.
This is a specific process benefit, not a claim that post-punching is universally superior. The evidence ties it to variation that develops when material is punched before forming and then stretched during the subsequent roll-forming process.
A line arranged with post-punching and cutoff, but without pre-punching, also has less material in process. The cited source says this can help reduce scrap caused by line stoppages and adjustments. Because the finding is qualified, it should be treated as a potential outcome rather than an assured scrap reduction.
For high-strength material, the punch and cutoff plan must also account for equipment and tool demands. Punching and cutoff stations require sufficient press tonnage, and tooling used to punch and cut high-strength material requires more frequent service because tool life is shorter. The available evidence supplies no universal tonnage figure or maintenance interval.
Pre-cut versus post-cut roll forming
Cutoff arrangement is related to feature sequencing but remains a separate production decision. A pre-cut die produces an individual blank that then travels through the roll mill. A post-cut die cuts the profile after roll forming.
With pre-cut production, discrete blanks enter the mill. With post-cut production, the strip is formed first and cut afterward. The supplied evidence describes both arrangements but does not compare their productivity, cost, or dimensional performance. Neither arrangement can therefore be presented as generally better on those measures.
The practical connection is the order of punching, forming, final-length control, and shearing. Part-length and feature-location defects can arise from the length-control system that controls punching and shearing, or from the stage where punching and cutting occur. Reviewing cutoff together with feature operations helps keep those relationships visible.
A practical sequence-review checklist
The following checklist is an editorial way to organize the evidence-supported process questions; it is not a universal selection formula:
1. Map the part requirements. List the required holes, notches, embossments, cutouts, shear features, and final length.
2. Trace the strip through the stands. Identify the flat-strip condition, relevant intermediate conditions, and the final profile.
3. Mark the three feature-operation positions. Consider whether each feature could be made before forming, between stations, or after forming.
4. Review downstream forming. For each possible station, identify the bends and stretch that occur after the feature is made.
5. Connect punching to length control and cutoff. Review the order of punching and shearing, including whether the line uses pre-cut blanks or post-cut formed profiles.
6. Account for material-specific demands. For high-strength material, include press-tonnage needs and the more frequent tooling service associated with punching and cutoff.
This approach keeps the available choices in their proper context. A feature-operation location is part of the full line sequence rather than a decision detached from forming and cutoff.
Conclusion
Roll forming punch placement can be before forming, between forming stations, or after the profile is complete. Pre-punching places features in flat strip; mid-line punching places them after some forming but before the remaining stands; and post-punching places them after roll forming. Pre-cut and post-cut arrangements further determine whether the material receives final length before or after it moves through the mill.
The available evidence supports qualified effects rather than a blanket preference. Review each feature against the forming path, consider downstream stretch and material variation where relevant, and connect punching decisions with length control and cutoff. In welded roll forming, the cited evidence provides specific qualified observations about correctly located pre-punched holes; in the documented pre-punch/roll-form/cutoff sequence, it identifies a reason to consider post-punching critical features. Keeping those contexts distinct supports a more precise process review.
